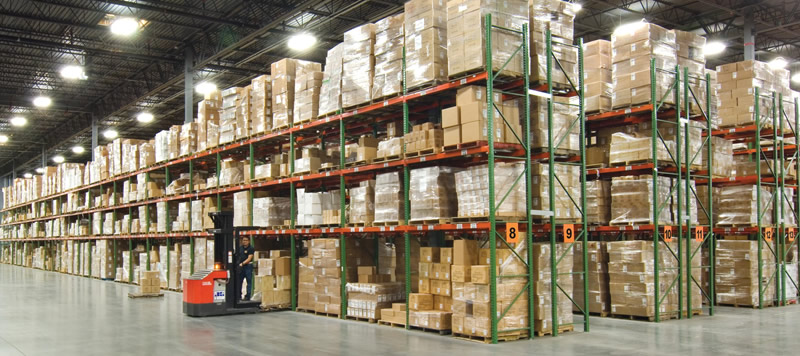

Pallet Rack Systems for Chattanooga Warehouses

A 40 ft clear bulk building in Enterprise South, a riverport yard on Amnicola Highway and an 18 ft masonry building in St. Elmo all need storage racks, just not the same ones. We design, supply and install six systems across Tennessee, north Georgia and northeast Alabama.

Pick the system that matches how your product moves, or call (423) 810-5886 and we will narrow it down with you in one conversation.

Our Warehouse Racking Products

Six systems cover almost every storage problem we see around Chattanooga. Most buildings end up using two of them together.

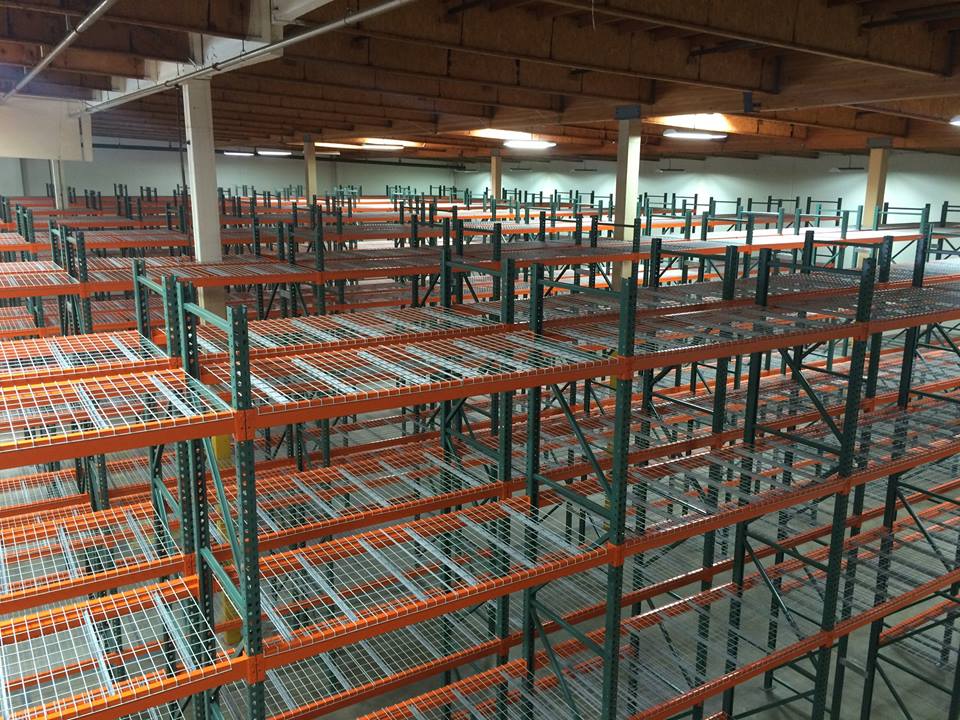

Pallet Rack

Also called selective pallet rack

Single-deep rows with every pallet in reach. The default for general distribution.

See details

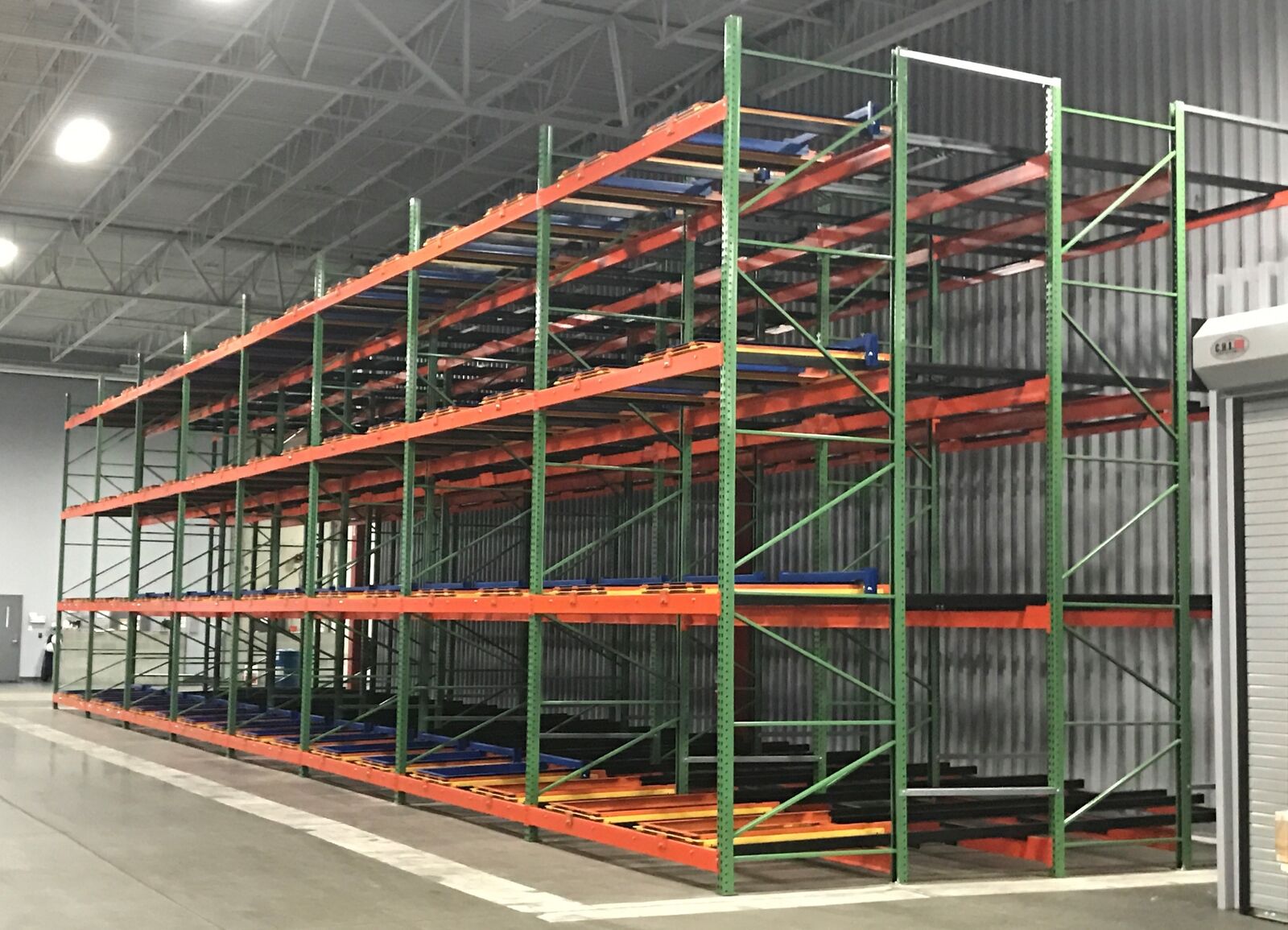

Pushback Rack

Two to six pallets deep per lane, loaded and picked from one aisle.

See details

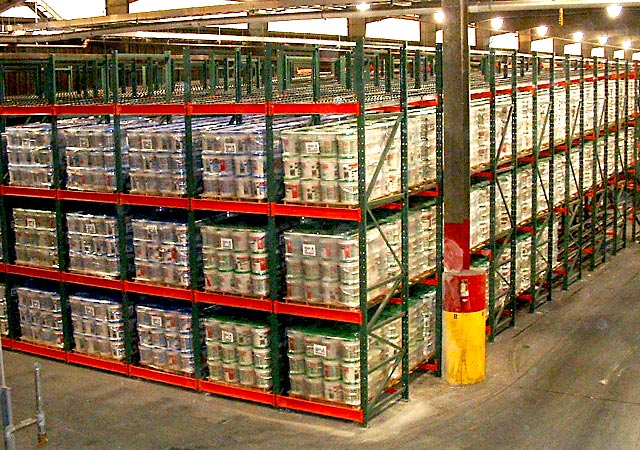

Pallet Flow Rack

Gravity lanes that rotate pallets first in, first out.

See details

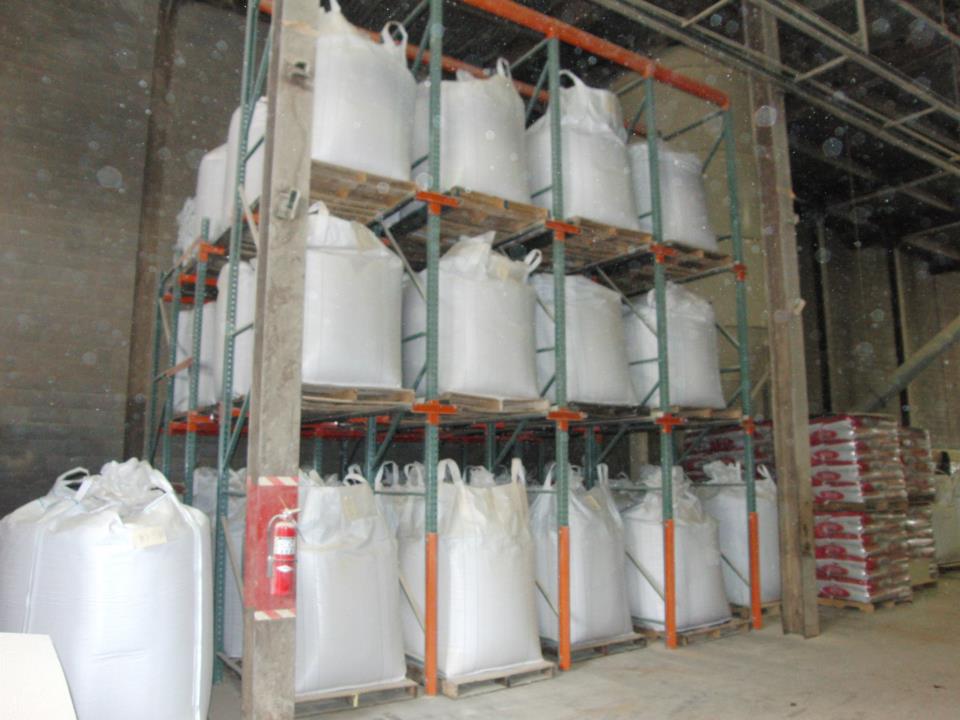

Drive-In Rack

Deep lanes trucks drive into. Maximum density for few SKUs.

See details

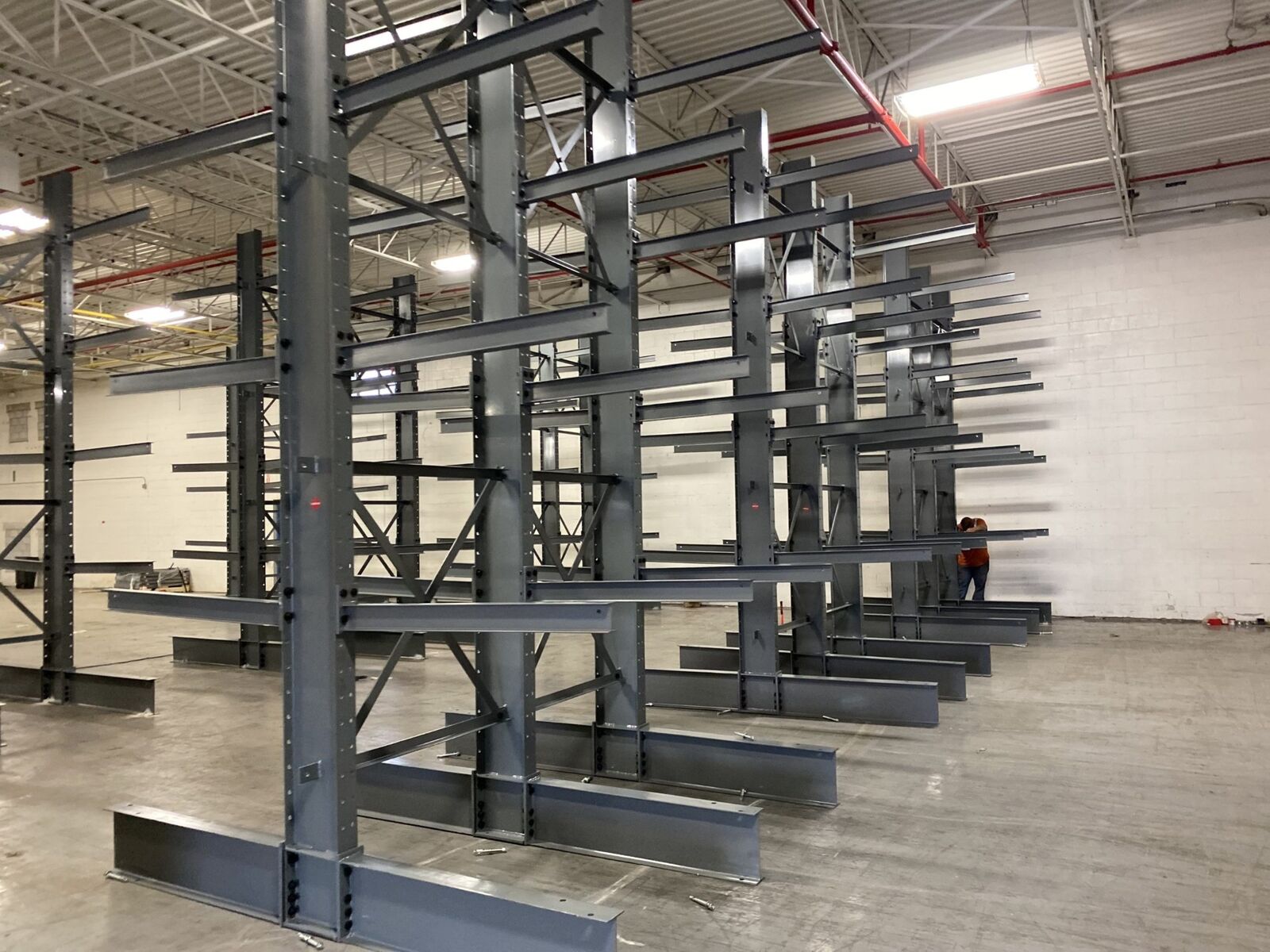

Cantilever Rack

Open-front arms for lumber, pipe, steel and rolls.

See details

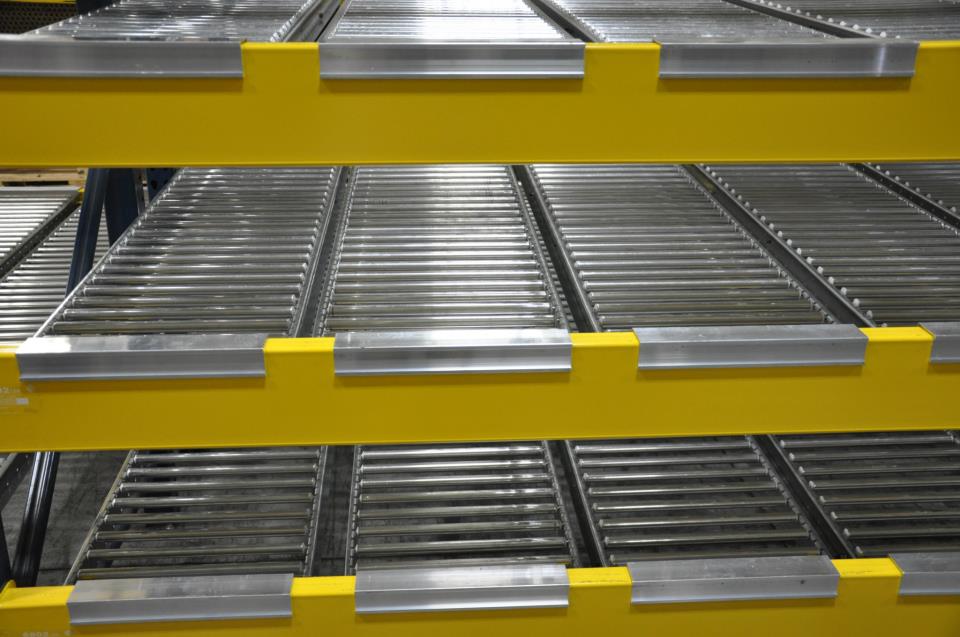

Carton Flow Rack

Sloped wheel lanes that feed cases to the picker.

See details

Four things decide the answer: how many SKUs you carry, how many pallets you hold of each one, how fast product turns, and how much height the building gives you.

Many SKUs with a pallet or two each point to selective pallet rack, the default for general distribution. Food, beverage and 3PL stock with several pallets per SKU favors pushback. Grocery and cold storage lean on pallet flow and drive-in. Lumber, pipe and building materials near the riverport need cantilever, and e-commerce picking needs carton flow.

Clear height is the other half. Buildings in Enterprise South, along I-75 toward Cleveland and at Cloud Springs in Ringgold run 32 to 45 ft. Older South Chattanooga, Alton Park and Lee Highway buildings run 16 to 24 ft, often with crane bays. Hot, humid summers in non-air-conditioned space also shape install scheduling. Moving buildings? See our warehouse relocation service.

Questions About Rack Types

Our Chattanooga Office

We work out of 651 E. 4th Street in Chattanooga, close to I-24, I-75 and US-27.
